Place of Origin:
Shenzhen, China
نام تجاری:
Polcd
گواهی:
RoHS, ISO9001
Model Number:

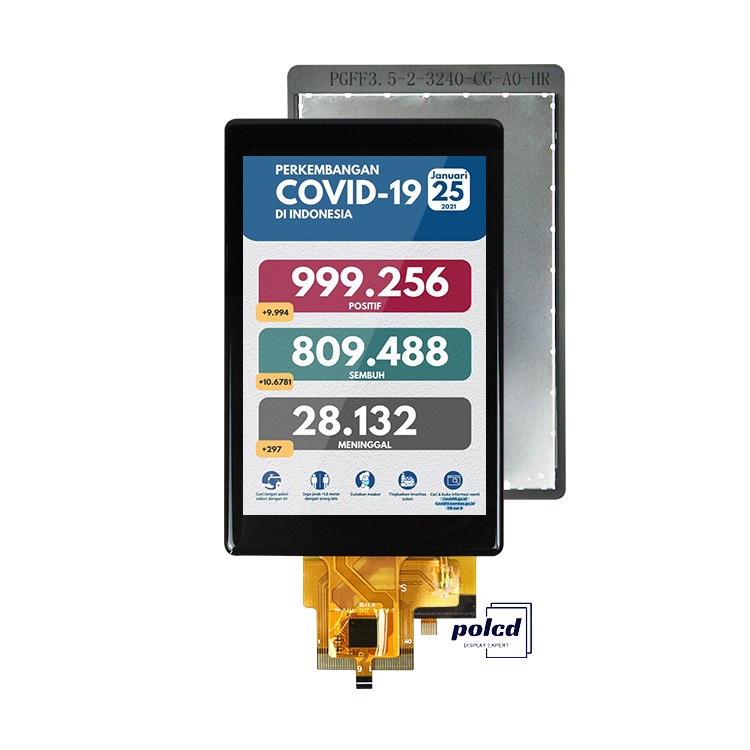

P035M083-IPS-CTP
با ما تماس بگیرید
ویدئو
ویدئو
ویدئو
Parameter:
| Item | Specification |
| Model | P035M083-IPS-CTP |
| Screen Size | 3.5 inch |
| Number of Pixel | 320RGB(H)x480(V) |
| Display area | 48.96(H)x73.44(V)mm |
| Pixel pitch | 51(H)x153(V)um |
| Pins | 40 pins |
| Outline Dimension | 58.50x92.00x4.15mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Gray inversion direction | -- |
| Display Color | 262K |
| Luminance(cd/m2) | 500 nit |
| Contrast Ratio | 700:1 |
| Surface treatment | -- |
| Interface | 3W 18Bit RGB |
| Back-light | LED Side-light type |
| Drive IC | ST7796U |
| CTP IC | CST3240 |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
